Extended usage for data-scientist

This application has been designed for a non-scientist usage. As the MIMIC-IV database is wide and complex, some part of the database are not covered by MIMICWizard. This page is here to explain the internal design of the app so that any data-scientis from a research platform could extend the app.

Add new custom event to the application

A User Interface has been developed to add custom event directly throught the application. You can find this interface in the Developper settings panel.

From a CSV file

You need to provide a event label, abbreviation and a csv (separator ,) including the following column :

subject_id

hadm_id

stay_id

charttime

value

valueuom

Directly from the database

You can also add a new event directly from a table in the database from the menu Create custom events from database in the Developper settings panel. You’ll need to bind each column to the required fields. If your table contains only stay_id or hadm_id, it can be automatically imputed using the checkboxs below the field selection.

Populate application with externally computed cohort

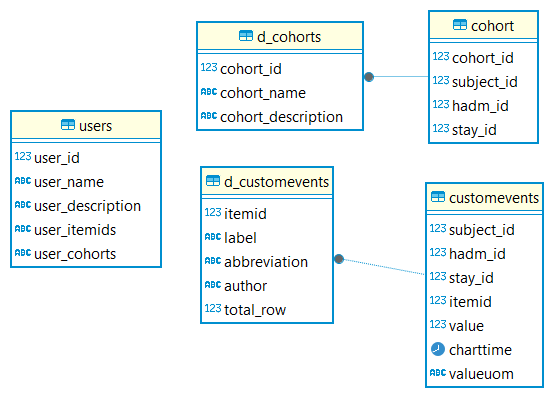

You can create a cohort externally to the app and use SQL to add this cohort to the app. You have to add a row with cohort information in the d_cohorts table and add a row by stay in the cohort table

See the appendix below for query specification.

If you’re not familiar with SQL or have issue with Postgres adapter in your favorite data science language, I recommend using DBeaver Community Edition to explore and directly add data to the app database
